At HOAJEAR Intelligent Manufacturing (Suzhou) Co., Ltd., we develop planetary gearboxes around a practical goal: helping your motor deliver useful motion at the machine. Our PGE Economic Straight Gear Reducer brings that thinking to projects where suitable performance and controlled purchasing costs both matter.
We start with your working speed, load, space and positioning needs. From there, we review the reducer configuration and motor connection. This page explains our selection approach, the role of straight teeth, and the information we need to prepare a clear technical proposal.
1. An Economical Gear Reducer Built Around Your Actual Task
We use the word economic to describe a sensible buying decision. A gearbox should meet the job without adding features your machine cannot use. For a feed roller, transfer unit or auxiliary drive, that can mean giving priority to working torque, mounting fit and repeatable operation before chasing the smallest possible backlash figure.

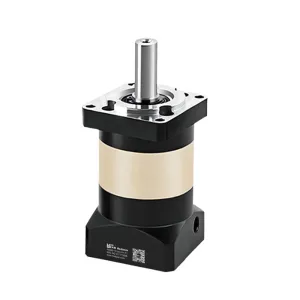

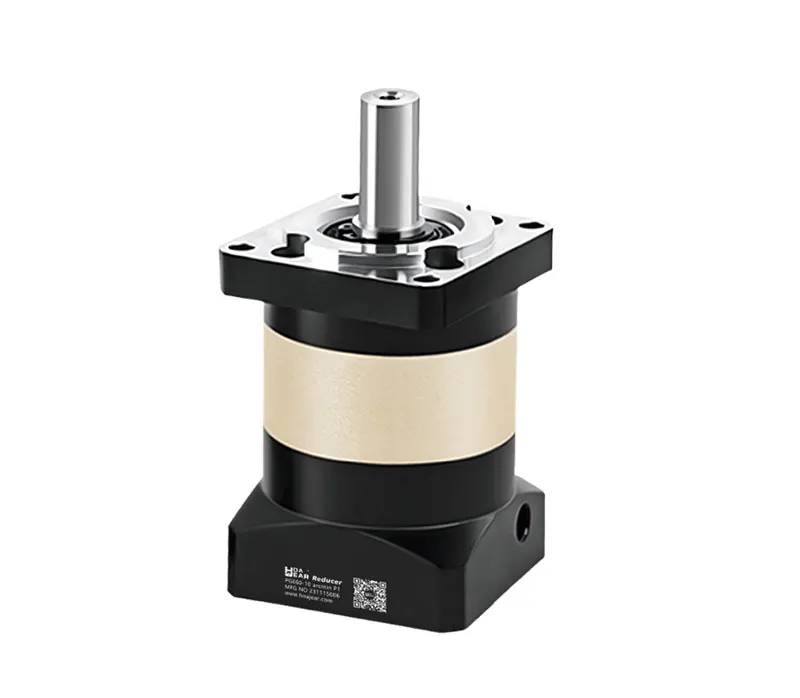

Our PGE Economic Straight Gear Reducer is a straight tooth, or spur gear, option within our planetary gearbox offering. We discuss it with buyers who need a compact reduction drive for industrial equipment and want to understand what they are paying for.
Speed reduction helps a fast motor turn a slower machine axis. It also increases the available output torque, within the reducer's permitted load limits. Torque simply means turning force. A machine may need more of it when moving a loaded conveyor, pulling packaging material or accelerating a rotating fixture.
We keep the buying conversation tied to measurable requirements. Your acceptable output speed, reversal behavior, load pattern and installation envelope tell us far more than a request for a powerful gearbox. Even a short description of the working cycle helps us ask better questions.
For repeat equipment builds, we also consider how easily your team can install and identify the selected unit. Clear drawings, an agreed configuration and consistent purchasing information can save time during assembly and future replacement.

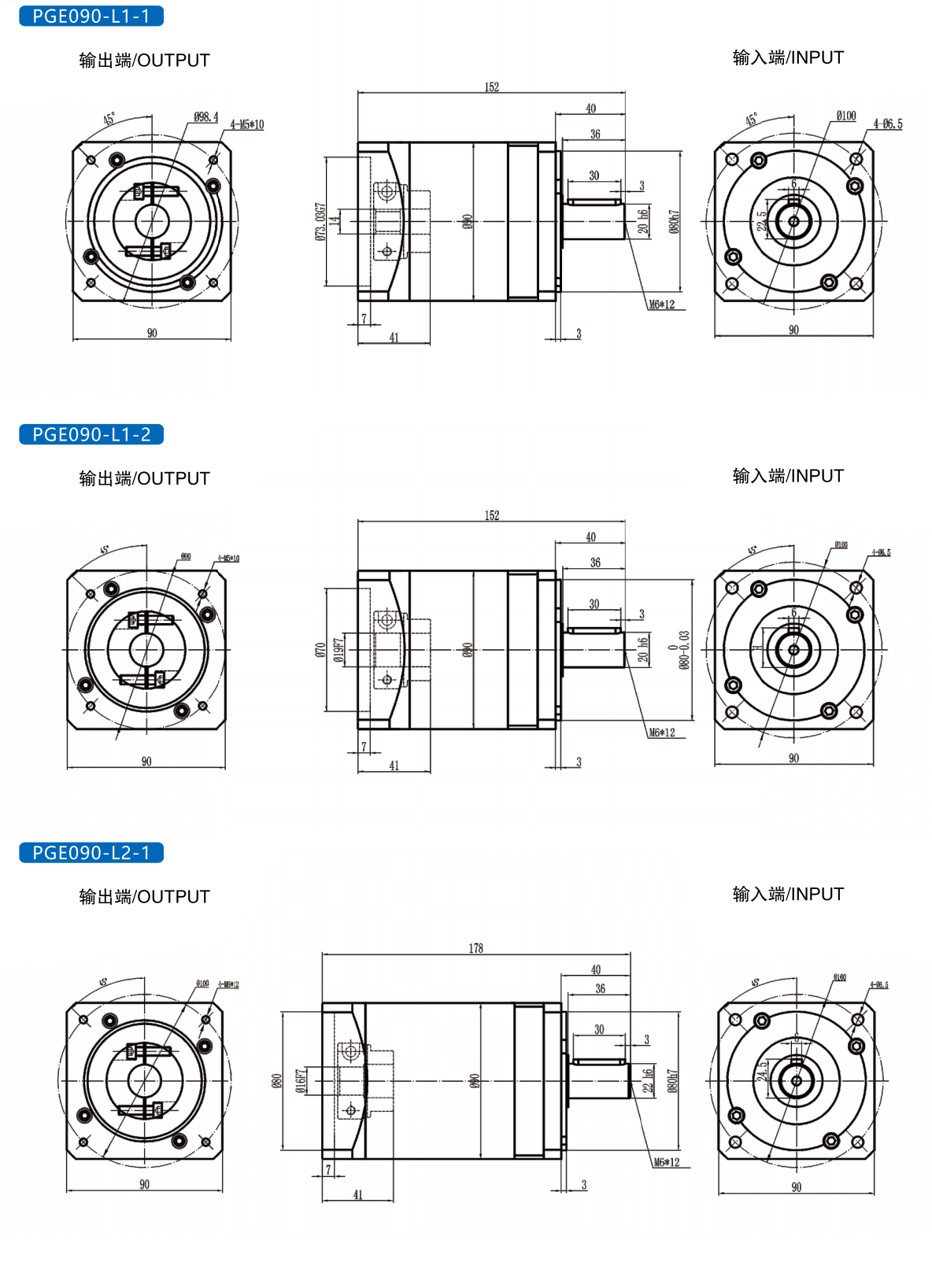

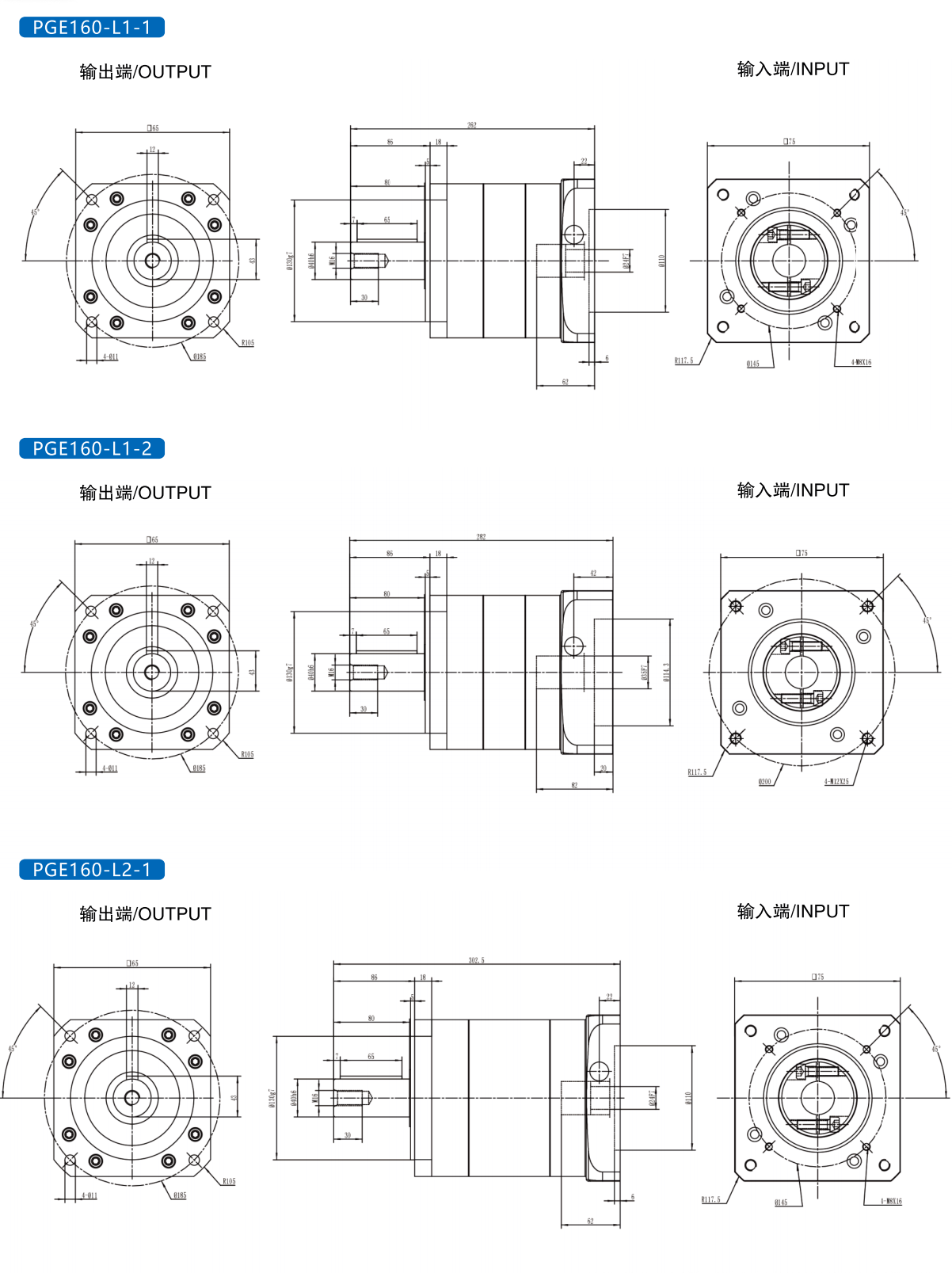

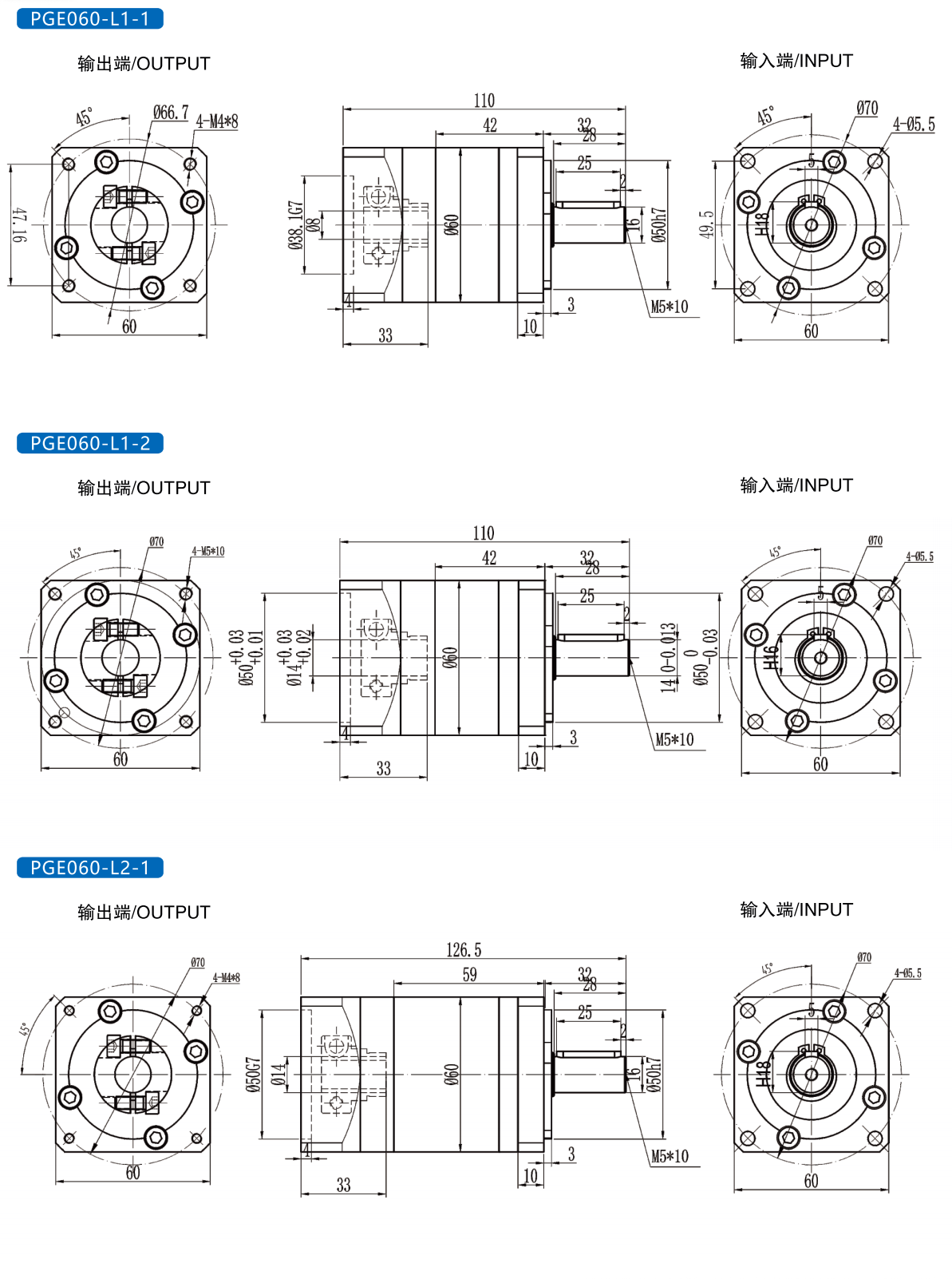

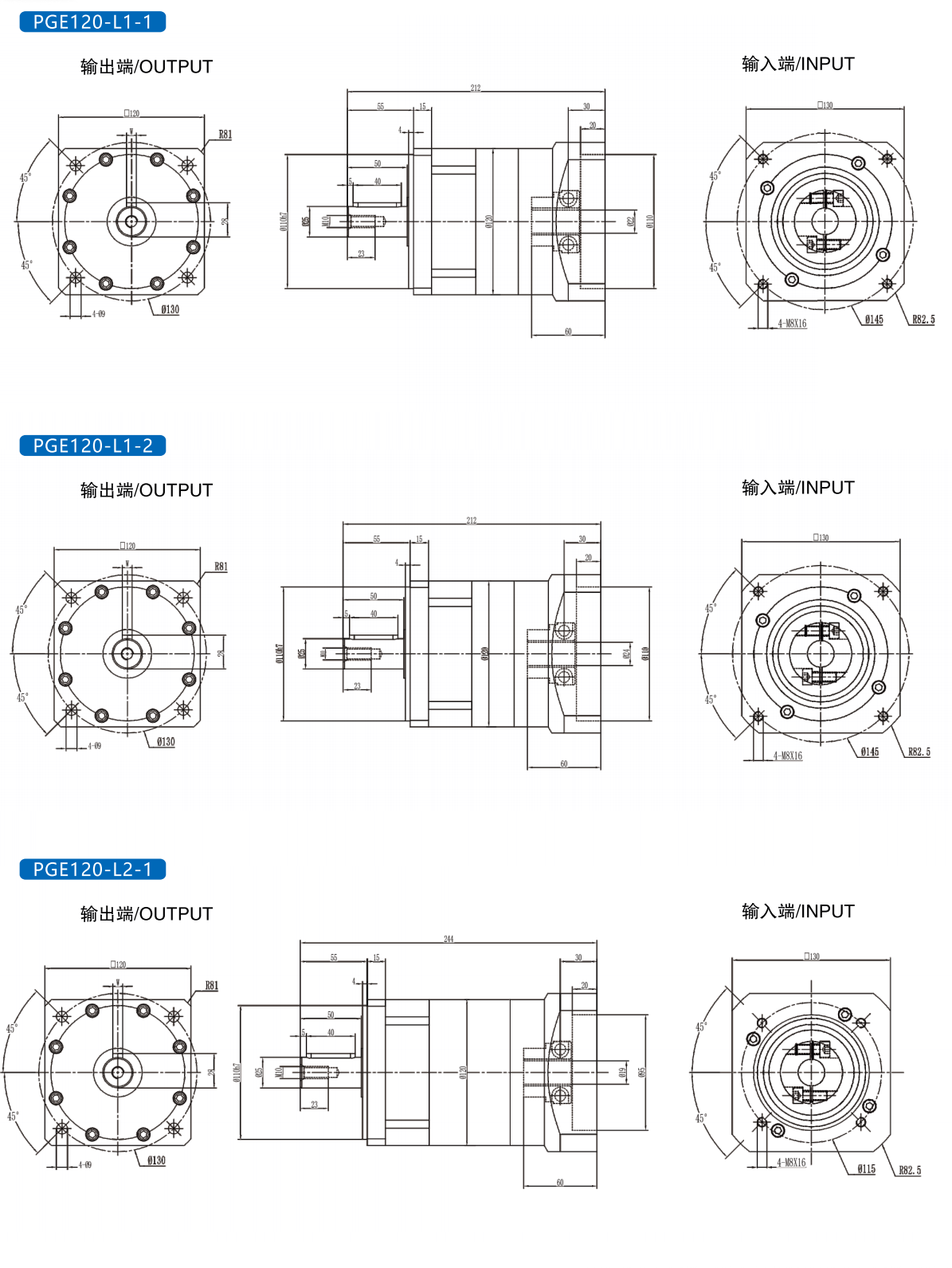

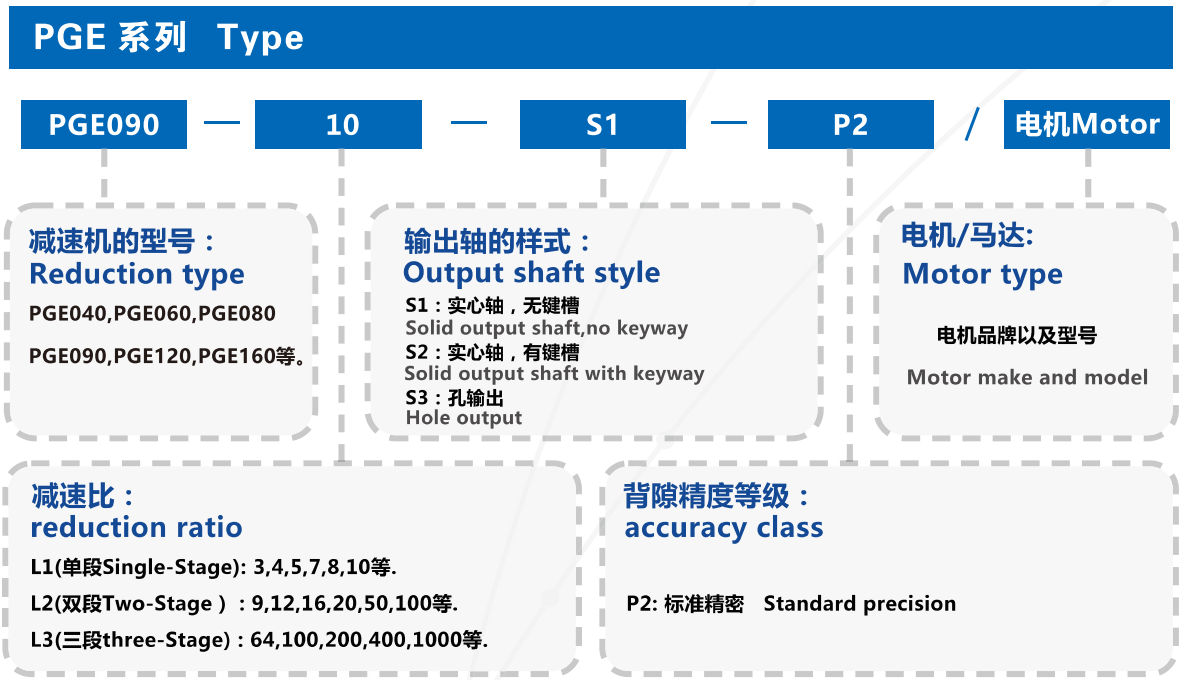

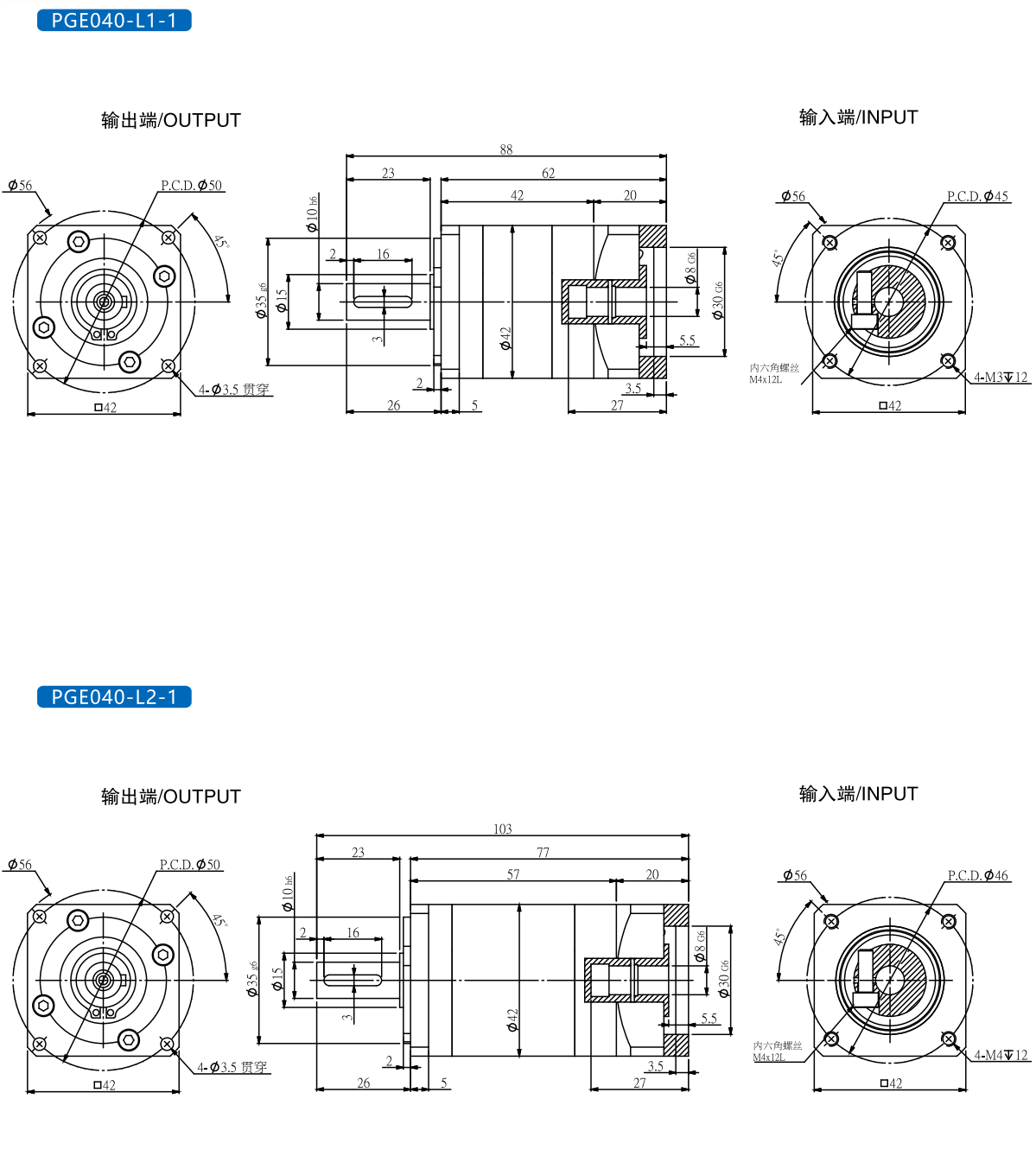

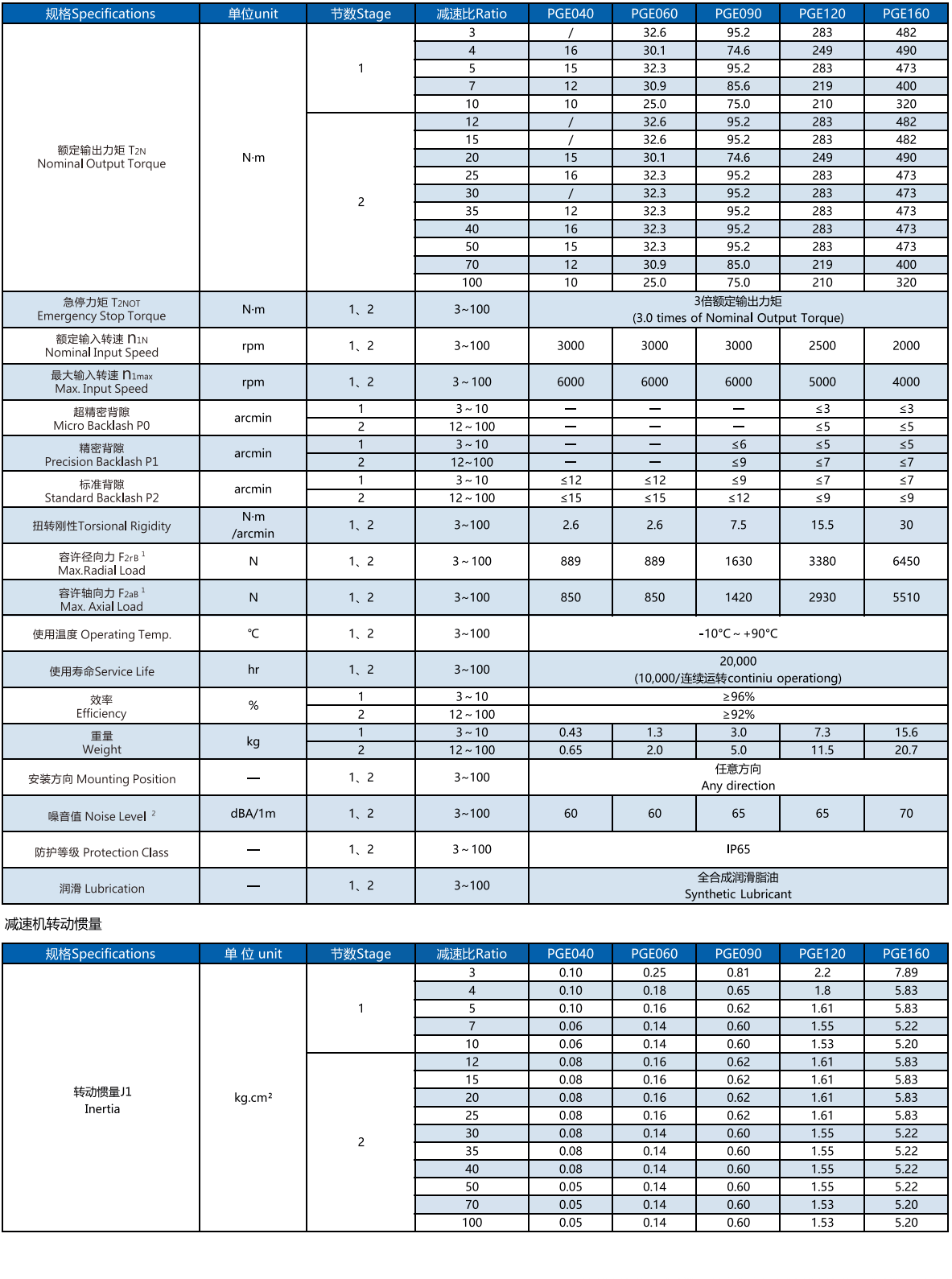

We confirm the specific PGE size, ratio, torque limits, backlash and installation dimensions during quotation. These values belong to the selected configuration. The comparison examples below explain selection principles; they do not replace a model drawing or a confirmed specification sheet.
When comparing quotations, we suggest keeping the requested configuration the same. Compare the motor adapter, output connection, inspection scope and packing requirements alongside the unit price. A lower starting price can be misleading if it leaves necessary items outside the offer. We want the quoted scope to be clear enough for your team to compare the complete purchase.
Our aim is straightforward: give you an economical Planetary Gear Reducer that fits the required duty, with technical details you can review before placing an order.
2. How Straight Teeth and Planetary Gearing Work Together
We separate two ideas when explaining gearbox design. Straight or helical describes the tooth shape. Planetary describes the arrangement of the gears. A planetary reducer can therefore use straight teeth; these terms are not competing gearbox categories.
In a typical fixed ring planetary stage, a central sun gear drives surrounding planet gears. The planets turn inside an internal ring gear and move a carrier connected to the output. We use this arrangement to bring reduction into a compact assembly.
Spur teeth run parallel to the gear axis. Helical teeth run at an angle. We consider both approaches across gearbox selection, but we explain the PGE as a straight gear product rather than borrowing the claims of our helical series.
| Comparison point | Straight teeth | Helical teeth |
|---|---|---|
| Tooth direction | Parallel to the gear axis | Angled to the gear axis |
| Helix angle | 0 degrees | Nonzero; design dependent |
| Ideal axial force from tooth mesh | Zero from helix action | Axial thrust requires consideration |
| Tooth engagement | No helical overlap | Progressive engagement across the face |
| Finished gearbox selection | Check actual ratings and duty | Check actual ratings and duty |
Sources: KHK, Helical Gears technical information, 2023 catalog; Oriental Motor, Gearhead Selection for Stepper Motors. This is a general engineering comparison, not measured PGE performance data.
We still check external shaft loads on a straight gear reducer. A belt, pulley or screw can apply forces through the output shaft, even though ideal spur tooth contact produces no axial thrust from a helix angle.
We also assess noise in context. Tooth accuracy, speed, lubrication, housing support and machine mounting all affect what an operator hears. For a noise sensitive installation, we ask for the operating conditions and agree on any required evaluation instead of promising a sound level without a test basis.
The useful question is whether the complete reducer meets your machine's needs. Tooth shape is one part of that decision.
3. Choosing a Ratio Without Losing Sight of Speed
We begin ratio selection at the machine output. Tell us how fast the driven shaft must turn, then share the motor's usable speed range. That gives us a starting point for choosing a reduction ratio.
We calculate output speed by dividing input speed by the ratio. For a basic torque estimate, we multiply input torque by the ratio and transmission efficiency. Efficiency accounts for energy lost inside the transmission; the result must still stay within the reducer's mechanical ratings.
Our example below holds input speed, input torque and assumed efficiency constant so the effect of ratio is easy to compare. The 90 percent figure is only a calculation assumption, not a published PGE efficiency value.
| Example reduction ratio | Calculated output speed | Calculated output torque |
|---|---|---|
| 3 to 1 | 600 rpm | 2.70 Nm |
| 5 to 1 | 360 rpm | 4.50 Nm |
| 10 to 1 | 180 rpm | 9.00 Nm |
Source: HOAJEAR illustrative calculations using the speed and torque relationships explained in Oriental Motor, Gearhead Selection for Stepper Motors. Formulas: output speed = input speed / ratio; output torque = input torque × ratio × efficiency. Ratios shown are examples, not confirmed available PGE configurations or load ratings.
We compare these results against your motion requirement. If a shaft needs 360 rpm at the stated motor speed, selecting the larger example ratio would miss the speed target. Extra calculated torque would not correct that mismatch.
For a motor that accelerates and stops frequently, we need more than a steady running torque value. A loaded start, short acceleration time or sudden reversal may govern selection. We ask for the cycle timing so the proposal reflects the work the reducer actually performs.
We also review load inertia, which describes resistance to a change in rotational speed. Reduction can lower the load inertia reflected to the motor. The final choice still needs to account for the gearbox's own inertia and the motor's control behavior.
A simple cycle description is often enough to start: accelerate, move, slow down, then wait. We ask how long each step lasts and whether the load changes during travel. If the machine sometimes jams or reaches a mechanical stop, explain that behavior too. It helps us discuss overload handling with your machine team before the gearbox configuration is settled.
When reviewing a PGE gearbox for servo motor use, we ask for the motor model and its torque versus speed information. For stepper or DC drives, we follow the same practical rule: check available motor performance at the required operating point.
4. Match Precision to the Workpiece, Not Just the Catalog
We treat precision as a machine requirement. A conveyor transferring cartons and a reversing fixture placing a small part may need very different behavior, even when their motor powers look similar.
Backlash is the small amount of free movement between gear contacts when the direction changes. We discuss it separately from repeatability, which describes how consistently a system returns to a position. Shaft twist under load is another effect. These should not be treated as one interchangeable accuracy number.
We can make an angular value easier to understand by converting it into travel at a stated radius. An arcminute is one sixtieth of a degree. The same angular movement produces more travel farther from the shaft center.
| Example angular clearance | Travel at 50 mm radius | Travel at 100 mm radius |
|---|---|---|
| 2 arcminutes | 0.0291 mm | 0.0582 mm |
| 5 arcminutes | 0.0727 mm | 0.1454 mm |
| 10 arcminutes | 0.1454 mm | 0.2909 mm |
Source: HOAJEAR geometric calculations, rounded to four decimal places. Arc travel = radius × angle in radians; radians = arcminutes × pi / 10,800. Values illustrate angular clearance only. They are not PGE backlash grades, positioning guarantees or total machine error.
We use this kind of calculation to discuss your tolerance in useful terms. Share the distance from the shaft center to the working point and the permitted movement there. Your drawing can then guide the discussion about gearbox clearance.
For an axis that changes direction often, we also want to know whether the load always presses against the same tooth flank. The loading pattern helps explain how clearance may appear during the working cycle.
Our review includes radial and axial loads. Radial force acts across the shaft, while axial force acts along it. Pulley position and overhang matter because the same belt force can place different demands on the output bearings depending on its distance from the housing.
We confirm the permitted loads for the selected model before approval. This keeps an affordable spur planetary gearbox useful at the machine, where precision, support and installation all work together.
5. Where We Consider the PGE Series
Packaging and material feeding
We consider the PGE for packaging machine drives such as feed rollers and material transfer mechanisms, subject to the required speed and load. A steady pull and a rapidly indexing feed create different demands, so we ask how the material moves through each cycle.
For a packaging machine gear reducer inquiry, tell us whether the drive handles film, cartons or another material. Include roller diameter, required line speed and the load conditions. That information helps us connect shaft speed to the motion your process needs.
Conveyors and logistics equipment
We review economical gear reducers for conveyor drives where the system needs suitable output torque within a limited space. Loaded starts deserve particular attention. A conveyor that starts empty and one that restarts under a full load can require different selections.
We ask about transport direction, starts per hour and how the load reaches the shaft. If a sprocket or pulley sits on the output, its size and mounting position belong in the inquiry.
Automation, robotics and auxiliary machine axes
We consider the PGE for suitable transfer axes, handling devices and auxiliary mechanisms in automated equipment. For robotics, we assess the specific axis rather than assuming that every robot joint has the same precision, stiffness or load requirements.
We take the same approach to CNC equipment. An auxiliary feed or handling function may be a reasonable candidate, while a demanding cutting axis requires its own detailed assessment. The machine category alone cannot establish suitability.
Printing and coordinated motion
We discuss printing equipment applications in terms of roller speed, tension and timing requirements. Where registration matters, the allowable movement at the working surface helps define the precision needed from the complete drive.
Our application review also covers temperature, dust, moisture and access for maintenance. We confirm environmental requirements individually. A general industrial application description does not establish washdown protection or a special enclosure rating.
6. How We Support Consistent Manufacturing Quality
At HOAJEAR, we combine gearbox design, research and development, and production. That gives our engineering team a direct role in turning your technical requirements into manufacturing and inspection requirements.
Our production resources include the Kashifuji KPS30 gear skiving machine, HAMA IN60 gear hobbing machine and DMG machining centers. We use these capabilities within the appropriate manufacturing route for the component and drawing. Different parts need different machining operations.
Inspection resources include the HT-350 gear inspection system, backlash testing equipment and a GLOBAL coordinate measuring machine. A coordinate measuring machine, often called a CMM, checks dimensions and geometric relationships. These checks help us assess whether parts match their drawing requirements.
We pay attention to the features that bring the assembly together: bearing locations, shaft interfaces, mounting faces and gear geometry. Small dimensional differences can affect alignment and fit, so these details deserve attention before final assembly.
Our acceptance discussion covers the agreed reduction ratio, backlash, installation dimensions and running condition. We establish the requirements through drawings and a technical agreement, giving your purchasing and engineering teams a shared reference.
If your project needs a particular inspection record, measurement condition or witnessed test, include that request before we finalize the order. We can then review the scope, method and documentation instead of leaving acceptance open to interpretation.
We also welcome clear feedback from your assembly team. A drawing note about access to a fastener or a mounting constraint can be just as valuable as a torque calculation. It helps us understand how the gearbox will be installed and used.
We recommend agreeing on measurement conditions where a value is important to acceptance. For example, a backlash requirement should identify the relevant configuration and test approach. Clear units and defined conditions help both teams interpret results consistently. We can review those details while preparing the technical agreement and quotation.
Our quality approach follows the company's commitment to quality first and customer foremost. For a PGE planetary gearbox supplier, that means making the specification understandable, checking the agreed features and keeping communication tied to the application.
7. From Motor Matching to Delivery
We need the complete motor model when reviewing the connection. Motor power alone does not describe shaft diameter, pilot dimensions, flange layout or usable torque. A motor drawing helps us confirm the interface and identify details that need clarification.
On the machine side, we review mounting space, output connection and the surrounding components. Share a layout if the gearbox sits close to a frame, guard or adjacent axis. Your team also needs room to assemble the connection and reach the required fasteners.
We recommend following the approved assembly instructions and tightening values for the selected unit. Keep mating surfaces clean, align the connections and avoid using impact force to fit a shaft component. A careful installation supports the performance expected from the gearbox.
During commissioning, we suggest beginning with an appropriate initial run and then progressing toward the intended operating cycle. Check rotation direction, motion settings and mounting security. Evaluate the unit under the agreed conditions before releasing the machine for routine production.
We provide maintenance guidance for the confirmed configuration. Ask us about lubricant requirements, storage conditions and inspection intervals before installation. We recommend keeping the supplied documents with the machine records so future service work uses the correct instructions for that unit.
Before ordering a production batch, we suggest reviewing the drawing revision with everyone involved. A changed shaft length or mounting feature should be reflected in the approved documents. We use that shared reference to keep the order clear when engineering, purchasing and assembly teams are working on different schedules.
We also ask you to confirm the delivery location and any packing restrictions early. A shipment intended for long storage may need different preparation from one going directly to assembly. Where special protection or marking is required, we review it with the order so the packing scope is understood before dispatch and receiving arrangements can be planned by your team.
We confirm production timing after reviewing the model, order quantity, stock status and customization requirements. The agreed delivery date belongs in the contract. A standard configuration and a modified interface may follow different production schedules.
Payment arrangements can include an advance payment and the remaining balance before shipment. We discuss the specific terms during quotation and record the final agreement in the contract.
We select courier, road, sea or air transport according to shipment size and timing. Packaging uses suitable rust and moisture protection, cushioning and secure fixing, with cartons or wooden cases chosen to suit transport protection needs.
For receiving inspection, we recommend comparing the delivered configuration with the agreed documents. Confirm identification, ratio, mounting dimensions and the required operating checks. If something needs clarification, the confirmed drawing and technical agreement provide a useful starting point.
8. Questions We Discuss Before You Order
Is the PGE a helical gear reducer?
We present the PGE Economic Straight Gear Reducer as a straight tooth product. If your inquiry requires helical gearing, tell us about the application so we can discuss a suitable series separately.
Can we pair it with a servo or stepper motor?
We review compatibility using the motor drawing, required motion and selected gearbox configuration. Shaft fit, mounting details and operating limits must all match. A motor category by itself does not confirm a compatible connection.
How do we choose the frame size?
We consider running and peak torque, speed, duty cycle, external shaft loads and installation space together. Send your load description and motion cycle so we can review the appropriate configuration.
What backlash value will we receive?
We confirm the backlash requirement for the selected model in the technical agreement. Tell us how your axis reverses and what clearance your process permits. The illustrative angular values on this page are not product specifications.
Can we request a different motor interface?
We can review your interface drawing and customization request. Feasibility, cost and production timing depend on the required change. We confirm those details before accepting the final configuration.
What should we send for a quotation?
We need your motor model, target output speed, load torque, motion cycle, mounting drawing and order quantity. Add any precision, environmental or inspection requirements. If some values are unknown, describe the mechanism so we can identify the missing information.
How can we start a PGE project?
Send us your application details and drawings. We will review the PGE Economic Straight Gear Reducer against the required duty, discuss the configuration and prepare the commercial terms. Our goal is a gearbox selection your engineers can approve and your purchasing team can order with confidence.
