1. What We Mean by a Precision Gear Commutator

We use commutator here to describe a mechanical gearbox that redirects rotary power. In our AT offering, the right angle arrangement is useful when a motor cannot sit in line with the driven shaft or when a machine needs power turned around a corner.

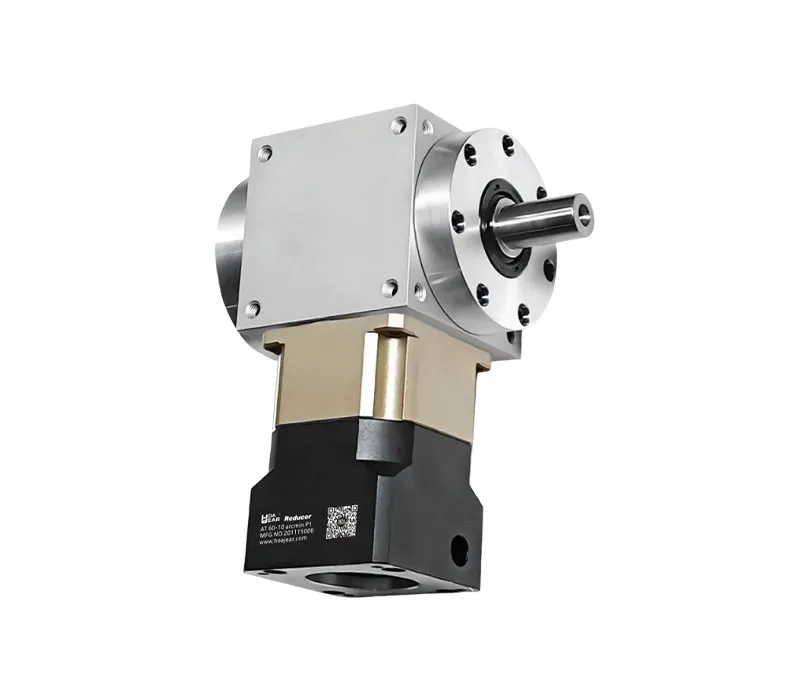

Our AT Precision Spiral Bevel Gear Commutator belongs in a selection discussion about the complete drive. The gearbox must suit the motor connection, transfer the required torque and provide the output arrangement your mechanism needs.

We also separate direction changing from speed reduction. A 1 to 1 configuration changes the drive direction while keeping the same nominal speed magnitude. A reduction configuration also lowers output speed according to its ratio.

For a 1 to 1 drive, we still check the torque requirement and operating conditions. Keeping the same nominal speed does not remove transmission losses or mechanical load limits. The configuration must suit the work at both connections. We review those details with the motor performance and the demands of the driven mechanism before confirming the proposal.

For a machine builder, that distinction matters. You may need to reposition a motor without slowing the process, or you may want both a direction change and a slower output. We ask about those goals before discussing the final configuration.

We design and manufacture transmission products with attention to torque, backlash and running noise. Specific AT performance values depend on the model and operating conditions. We confirm the selected configuration through drawings and a technical agreement.

We welcome an early layout showing the motor, gearbox and driven shaft. Include surrounding frame members, guards and service access. A gearbox that fits the outline space must also leave room for assembly and the checks your team needs to perform.

We also ask what problem the layout change is intended to solve. You may need more room beside a conveyor, a clearer service path or a different motor position around a frame. Showing the intended result helps us review the gearbox as part of the machine and keeps the discussion focused on a useful installation.

Our approach is practical: understand the required motion, agree on the connection details and prepare a specification that purchasing and engineering can use together.

2. How We Use Spiral Bevel Gearing

We use bevel gearing to transfer motion between intersecting shaft axes. Spiral bevel teeth follow curved paths across the gear face. Their contact develops progressively as the gears turn, supporting smooth transmission when the complete assembly is correctly designed and installed.

We assess more than tooth shape. Gear geometry, bearing support, mounting relationships and assembly all influence the result. The housing must hold those parts in the intended positions while the gearbox carries its working loads.

We also account for the forces created at the gear mesh. Spiral bevel contact can produce tangential, radial and axial force components. Bearing selection and support therefore belong in the gearbox design, alongside the torque requirement.

We review external shaft loads separately. A pulley, sprocket or other driven component can apply force to the shaft in addition to the internal gear forces. Tell us where that component sits and how it is loaded.

We discuss noise in the context of the installation. Input speed, load and machine mounting affect operating sound. If your project has a defined sound requirement, include the conditions under which it will be assessed.

We take the same approach to precision. A spiral bevel gearbox should be selected from its confirmed specifications and the application requirements. A broad description of the tooth form cannot establish the final machine's positioning behavior.

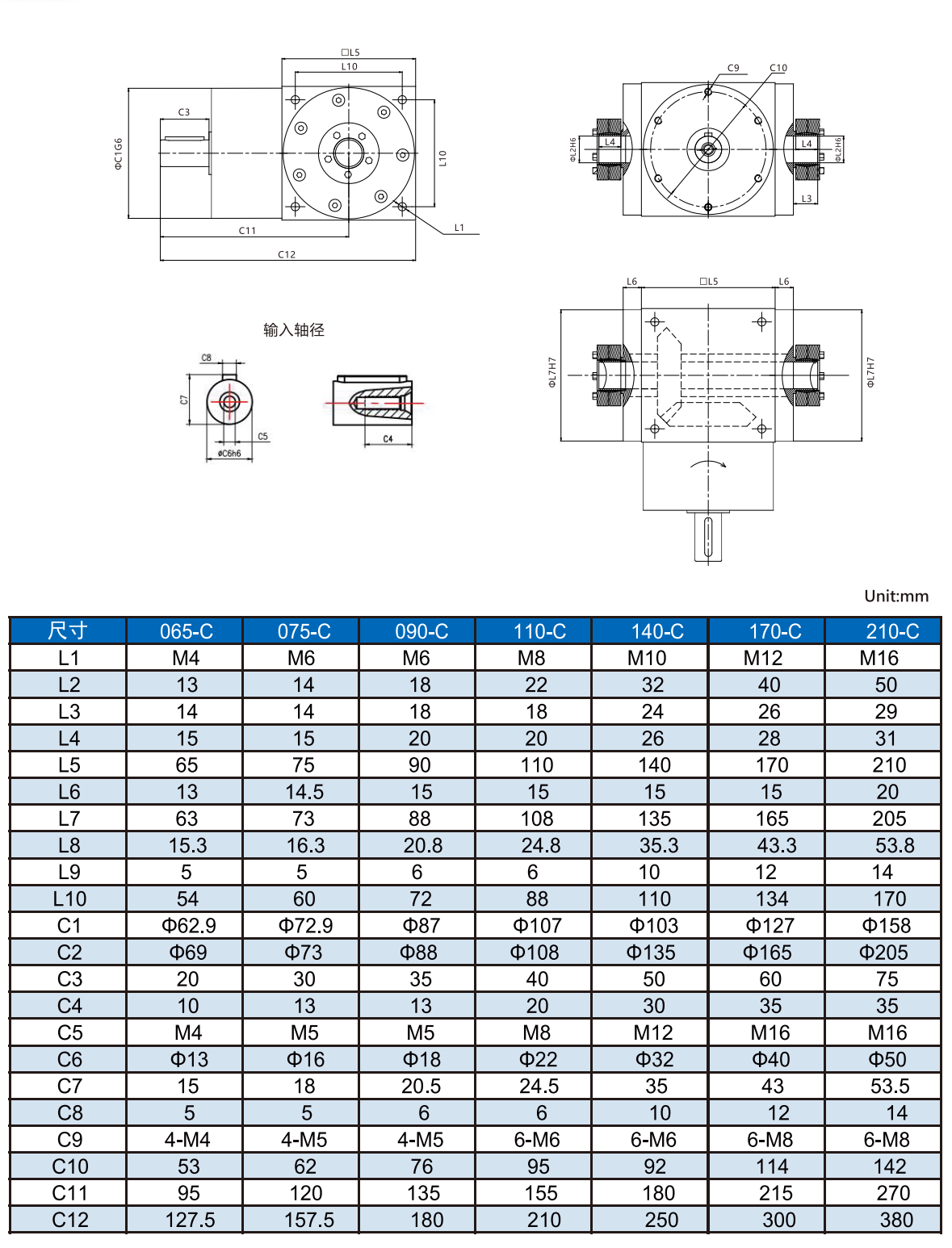

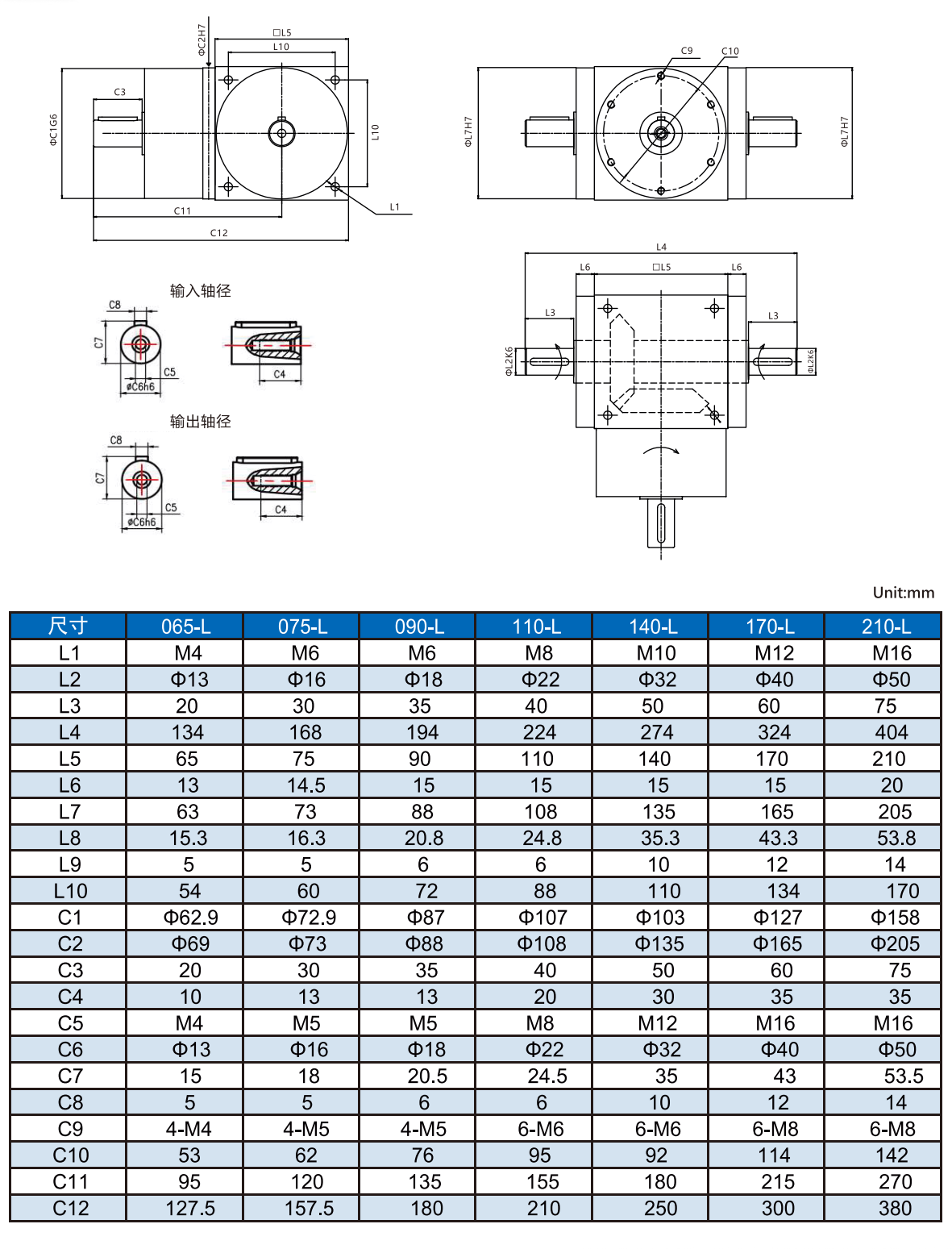

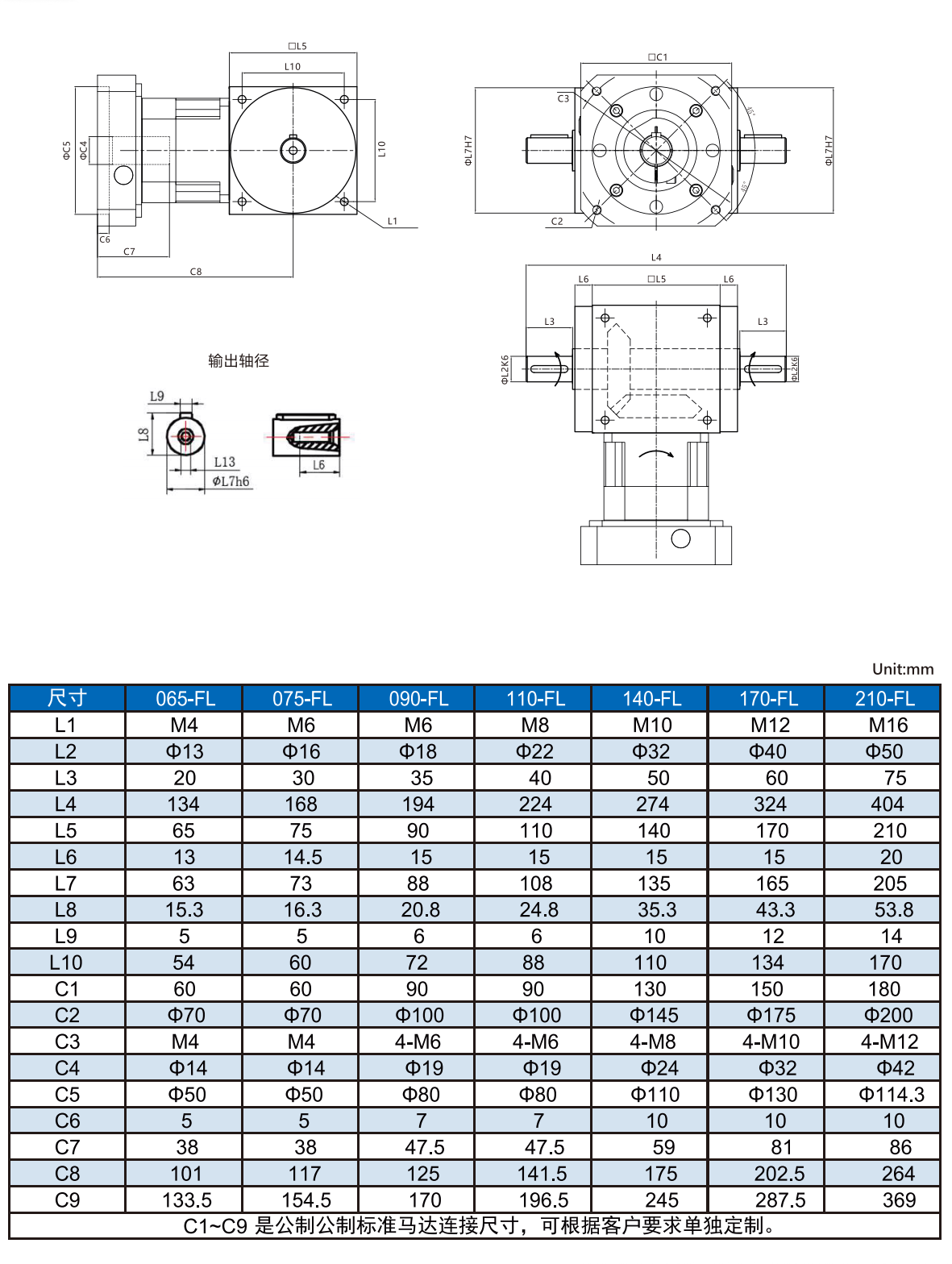

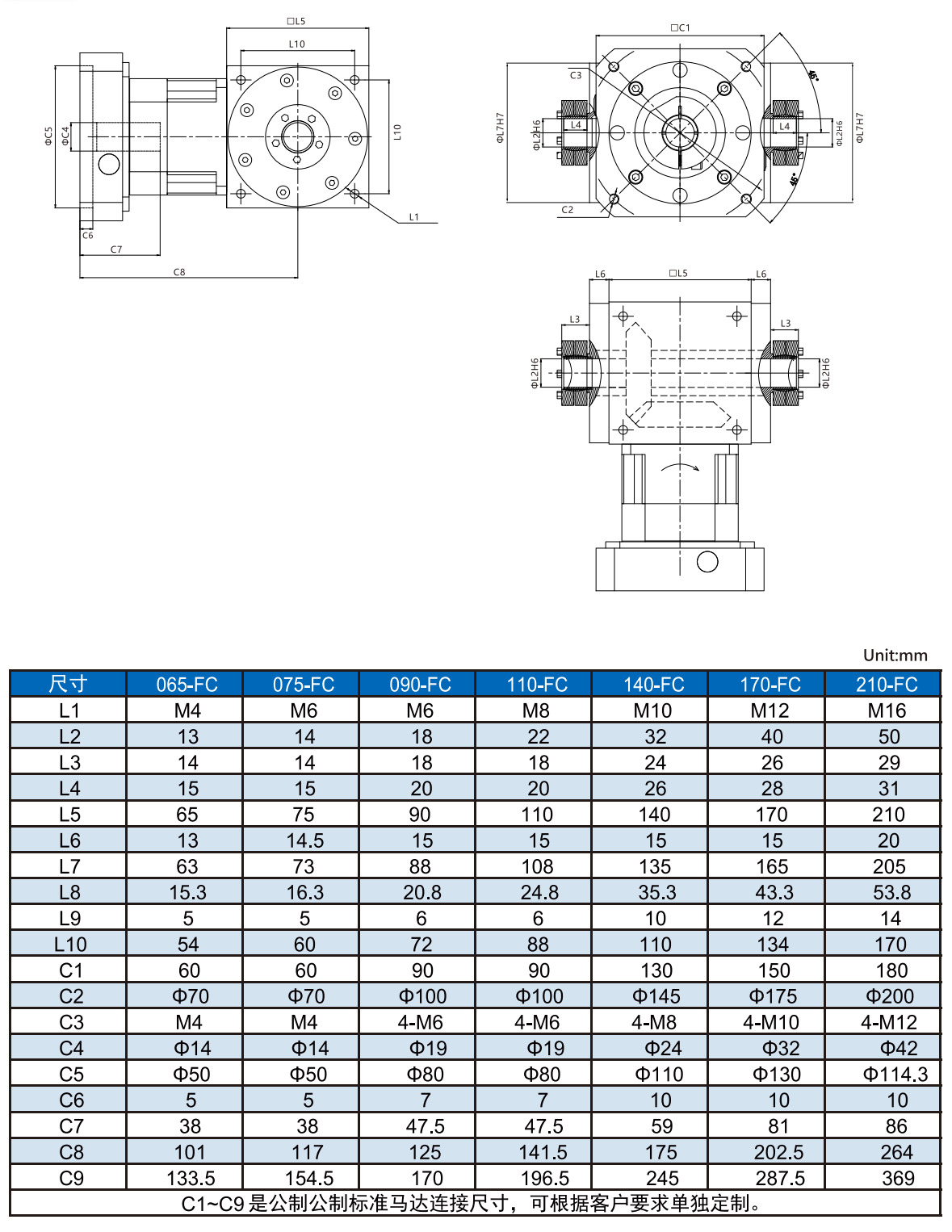

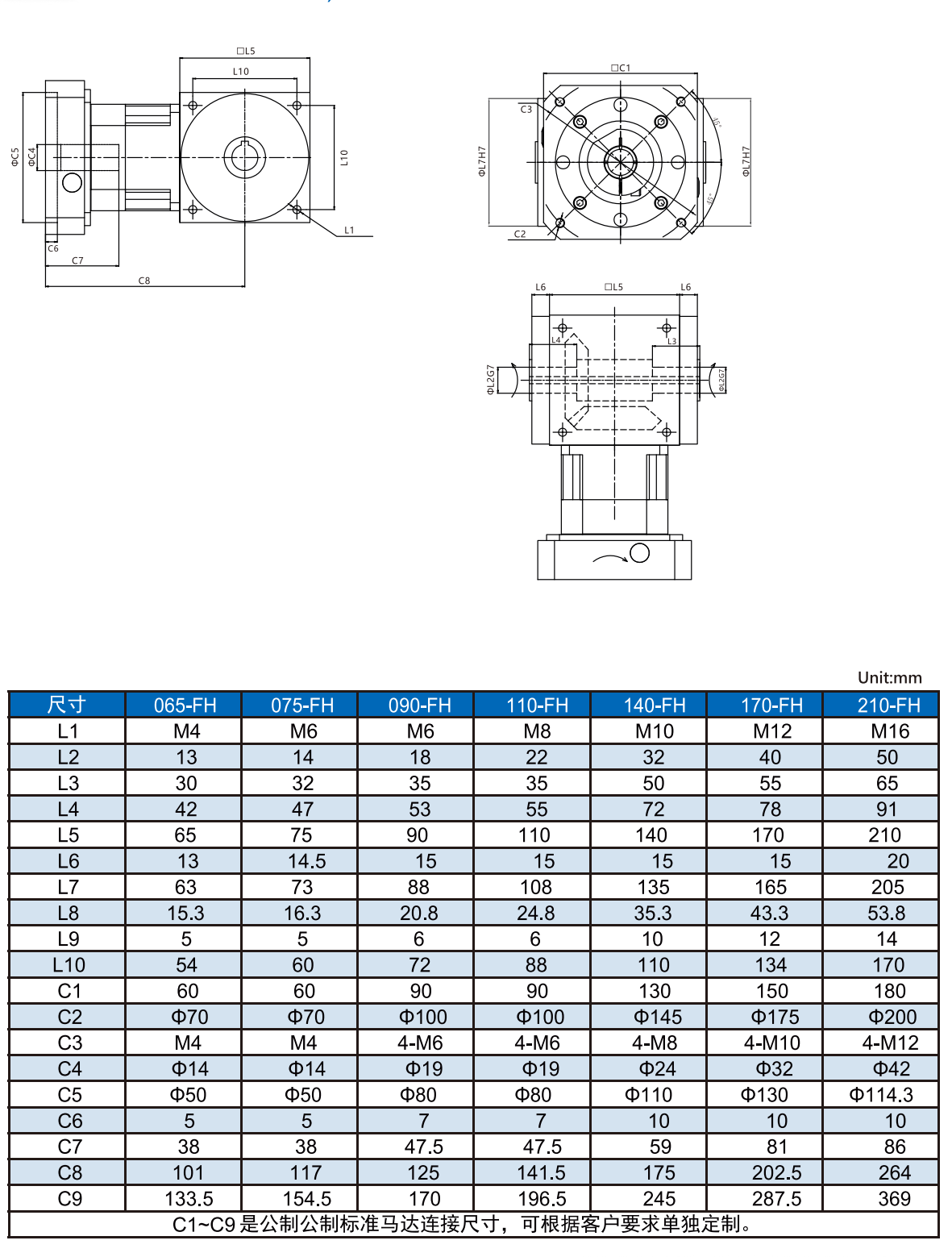

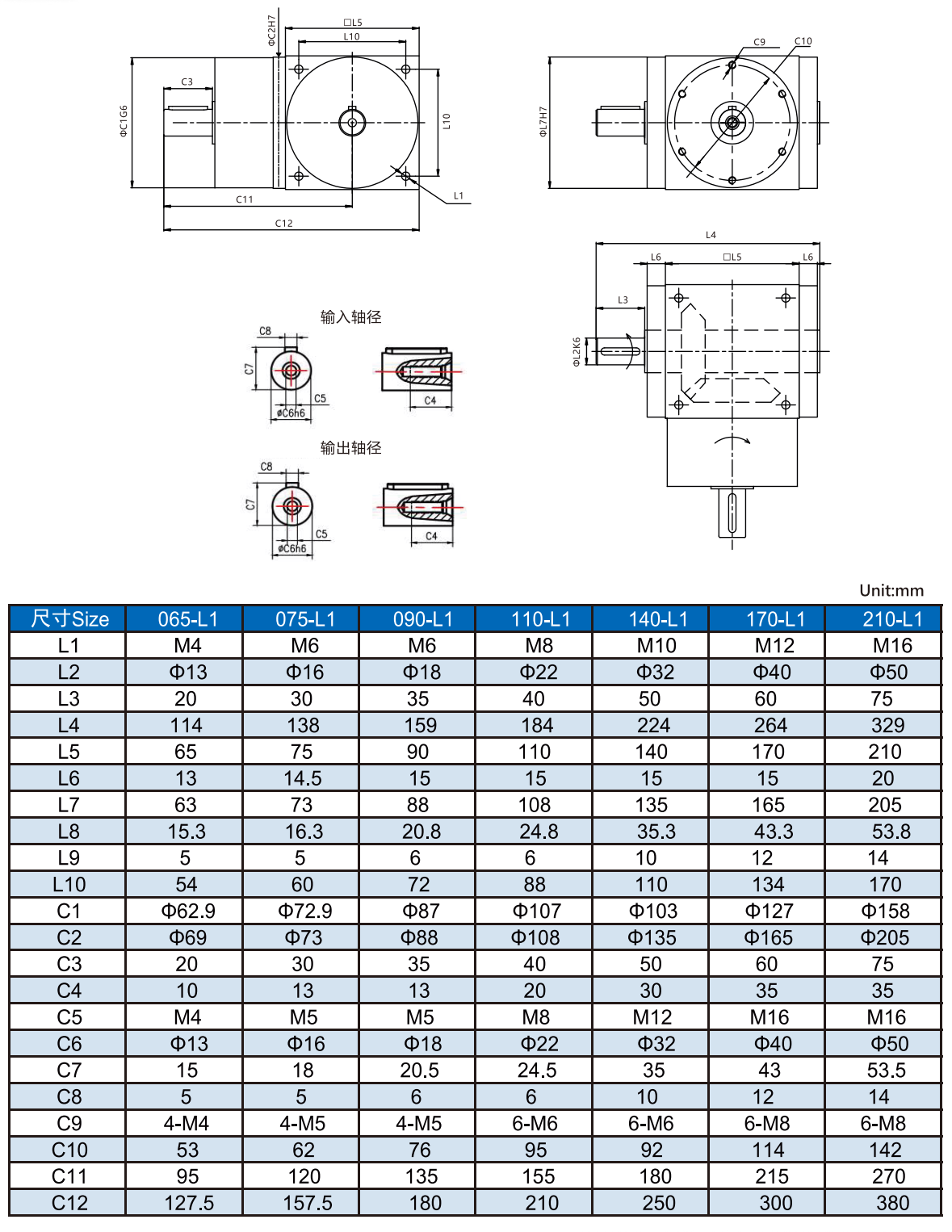

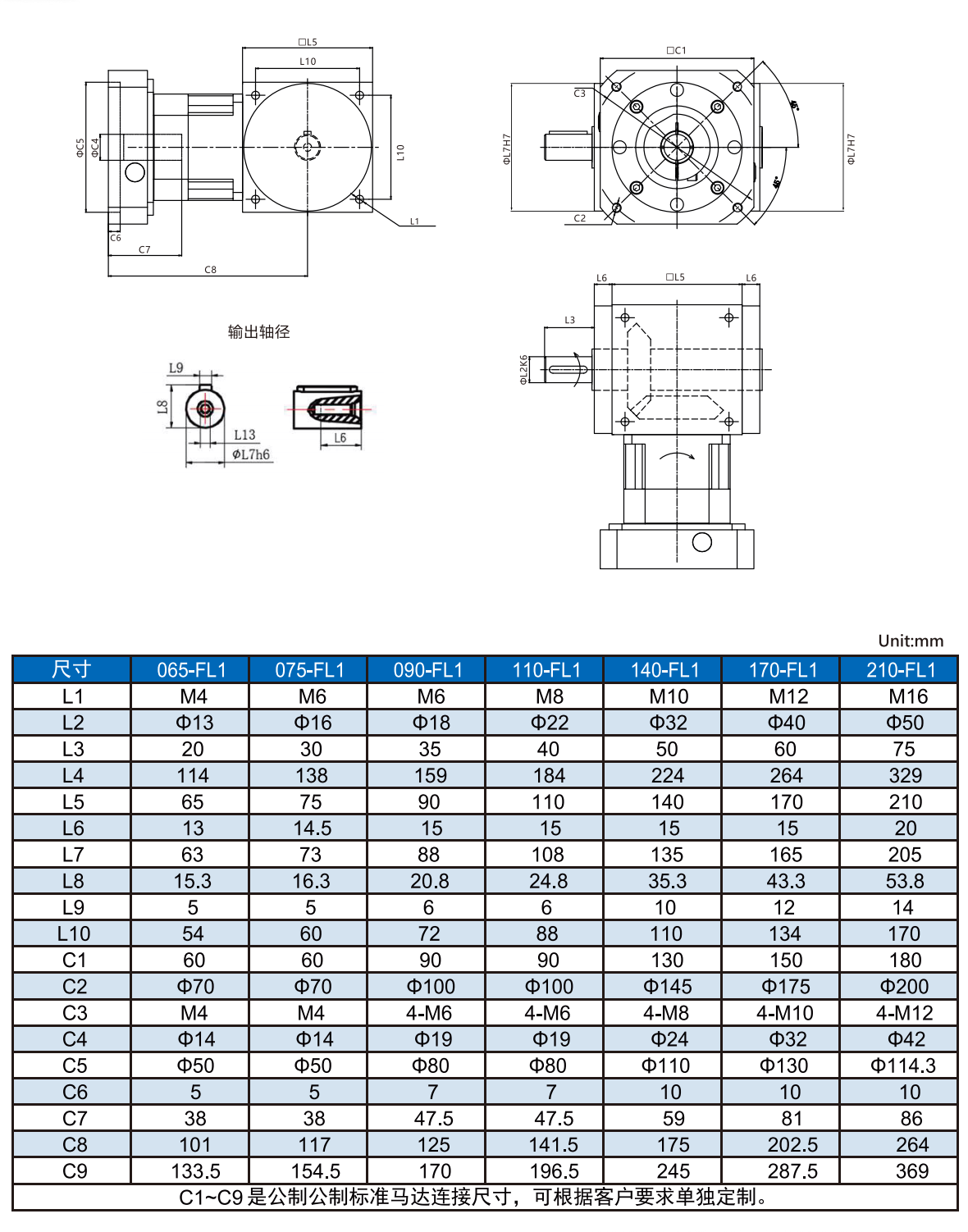

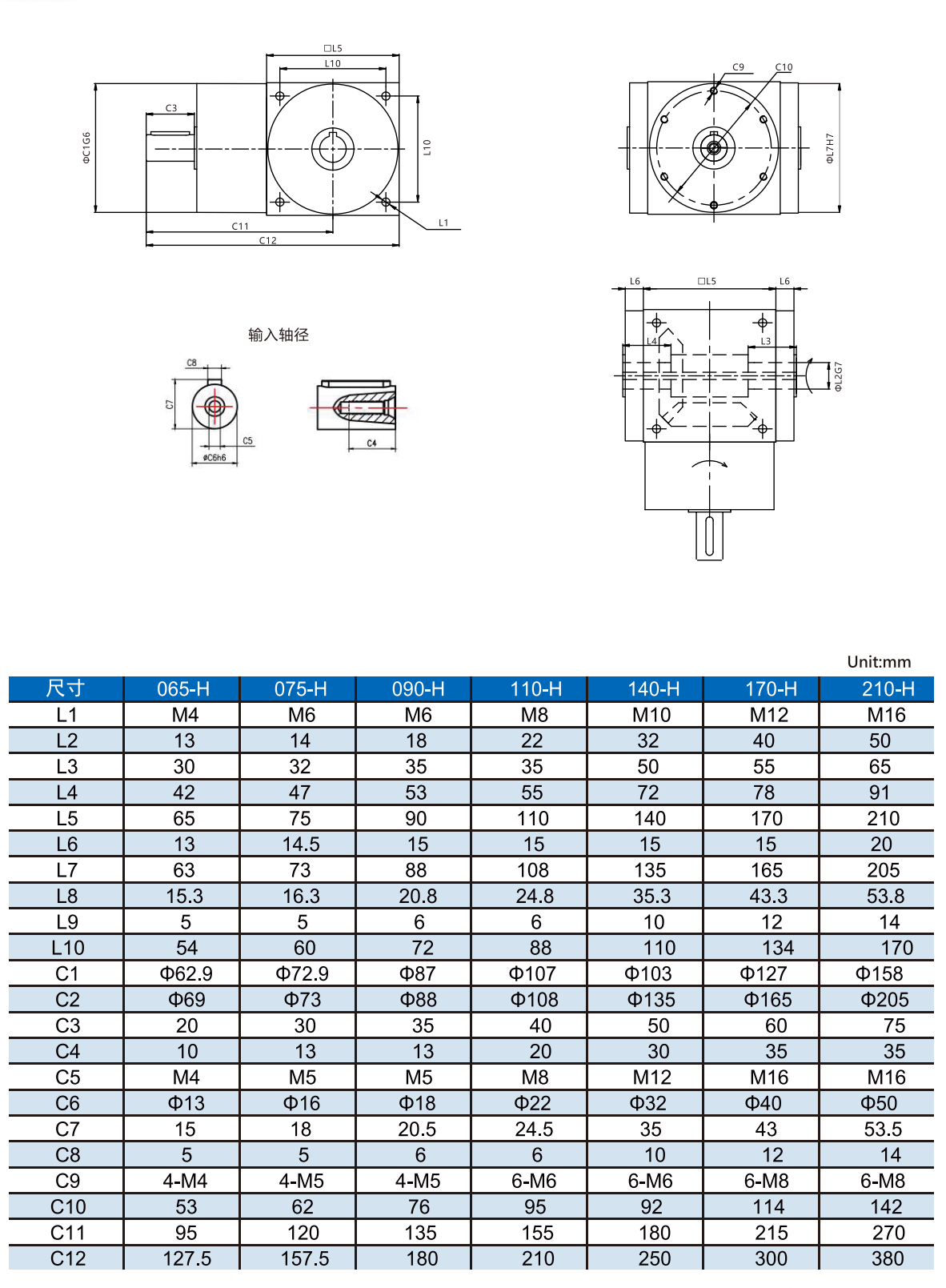

For your engineers, the useful result is a clear mechanical route from input to output. We confirm the shaft layout and installation dimensions on the drawing so the proposed transmission can be reviewed within the machine.

Our aim is to make the working principle easy to understand while keeping the selection tied to measurable requirements.

3. We Compare Complete Models, Not Ratio Alone

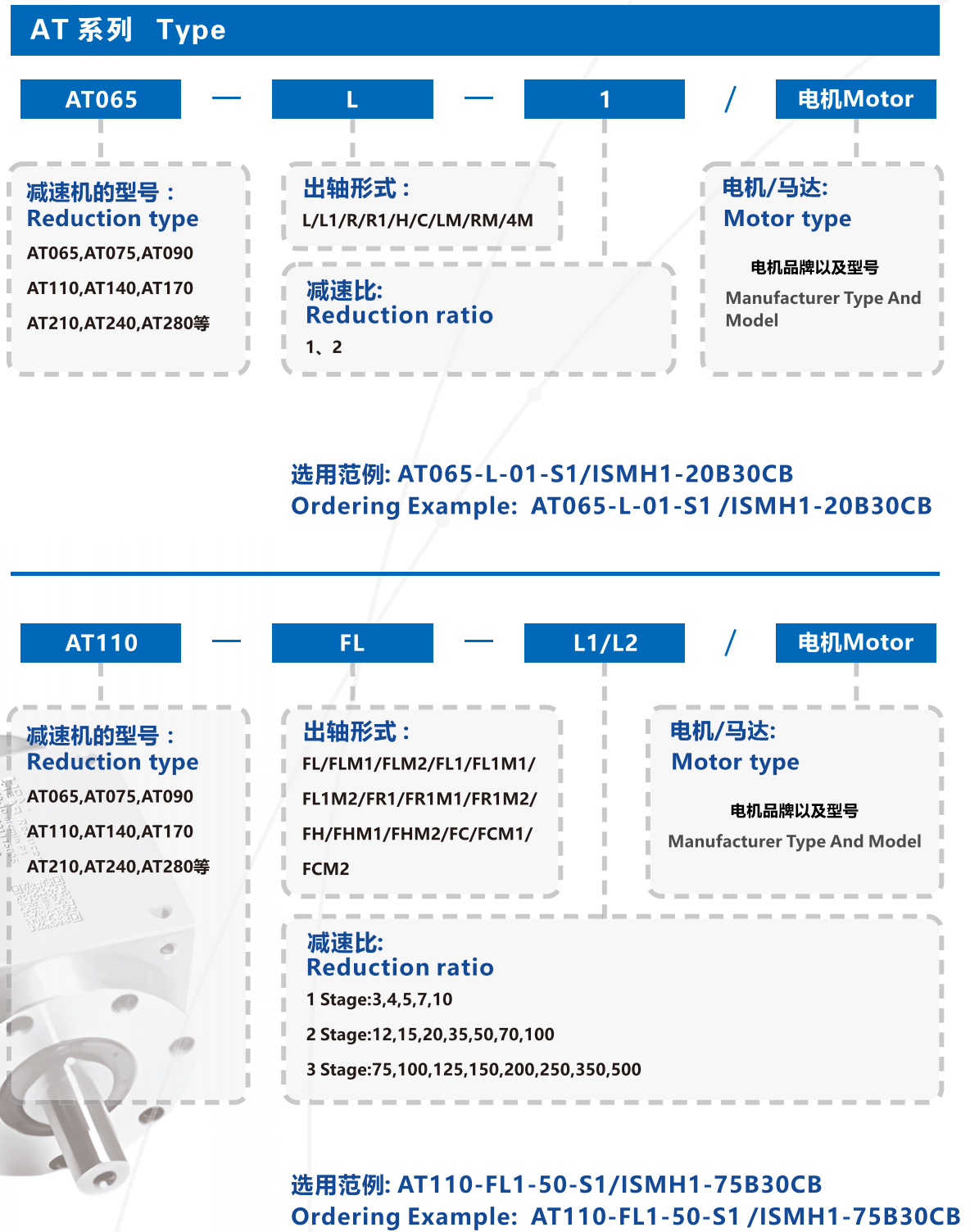

We ask for the required output speed and load before choosing a ratio. Our published product records include different AT configurations, so the full model designation matters when comparing available information.

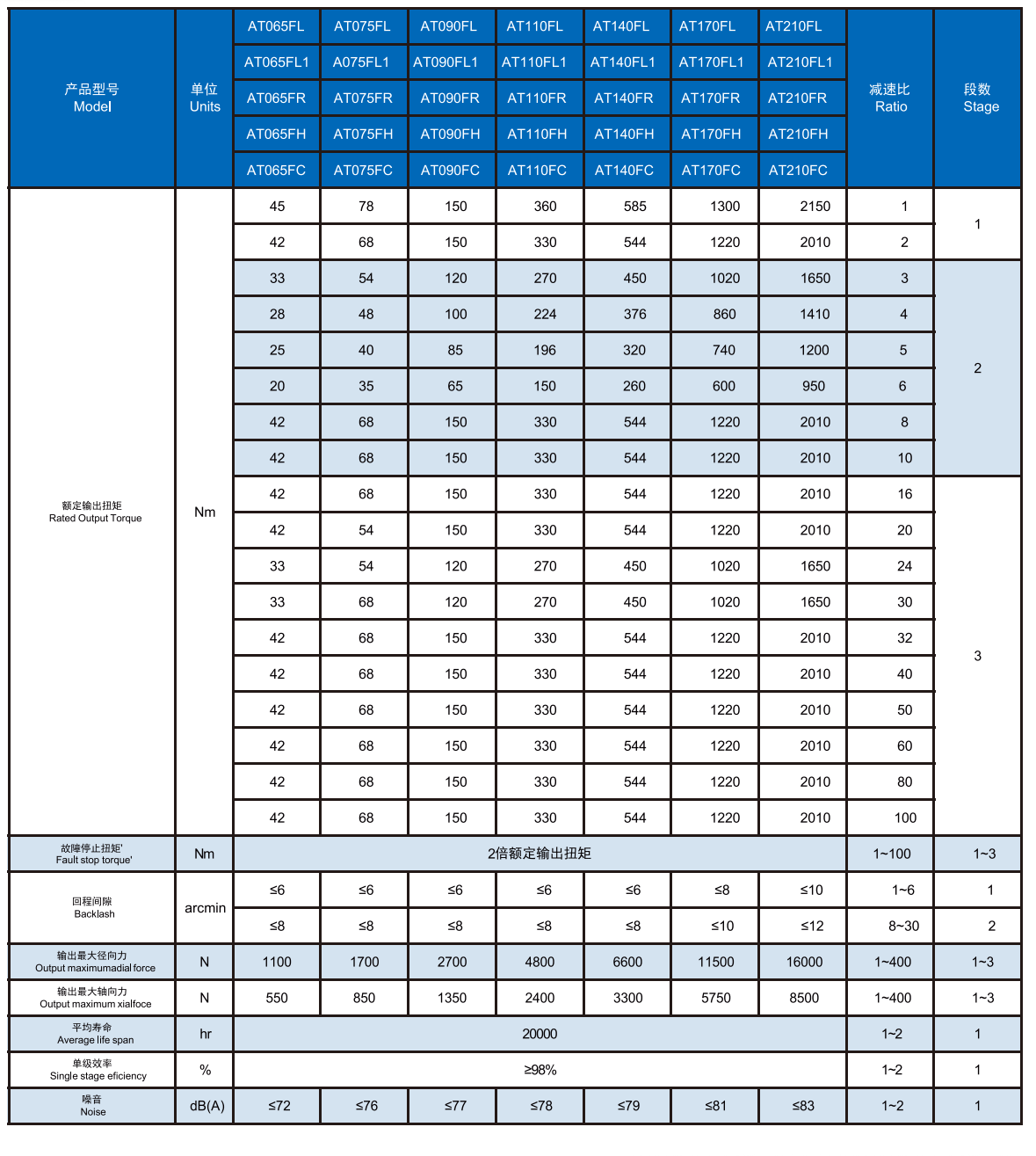

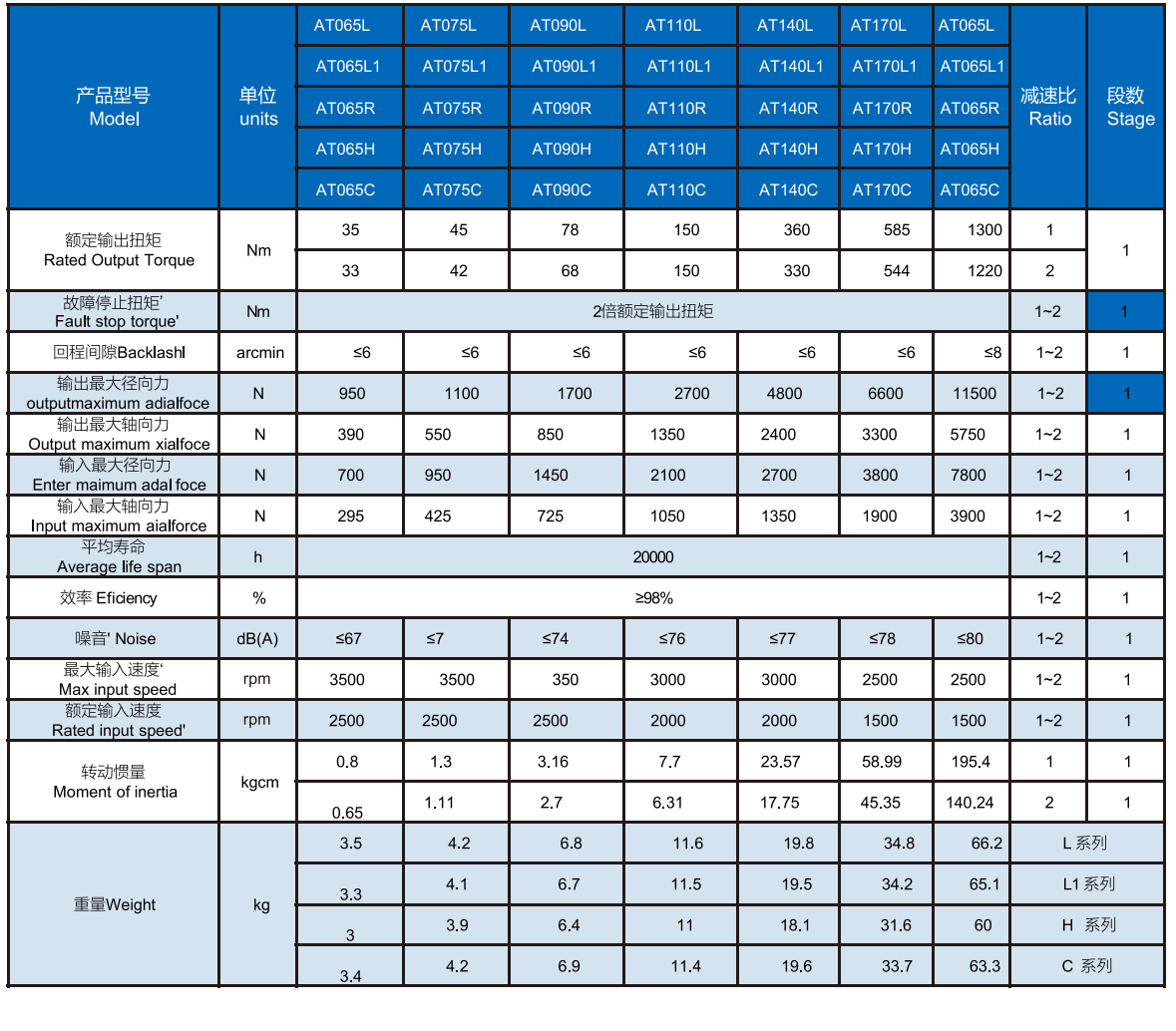

The table below gives three examples from our AT065 listings. We keep the complete suffixes visible because the examples do not all represent the same interface arrangement.

Source: HOAJEAR product records for AT065-1-FL/HG09, AT065-5-FH/HG07 and AT065-15-FL/HG09. Values apply to the listed examples and are not series wide guarantees. Confirm the current model, operating conditions, interface and accepted specification before ordering.

We use this comparison to show why ratio alone cannot establish capacity. A larger ratio does not automatically mean a larger rated torque. We assess the exact configuration against the intended operating duty.

For a basic speed calculation, we divide input speed by the reduction ratio. An assumed input of 1,500 rpm would give 1,500 rpm at 1 to 1, 300 rpm at 5 to 1 and 100 rpm at 15 to 1. These are calculated examples, not recommended operating settings.

We then check whether the motor can deliver the required torque at the working speed and whether the gearbox remains within its permitted limits. Steady running, loaded starting and short peak demands may require different checks.

If the torque value is not yet known, describe the mechanism and provide the dimensions you have. Tell us whether the load is pulled, lifted, rolled or rotated, and how it changes during the cycle. We can identify what information is needed for the calculation, helping your team move toward a clear requirement without guessing a gearbox capacity.

We ask how long each move lasts, how often the mechanism reverses and whether the load changes during travel. That information helps us review the AT gearbox for the actual working cycle.

We also consider the time spent running and waiting during a shift. A drive used for short movements with long pauses has a different operating pattern from one running throughout production. Include ambient conditions and nearby heat sources in the inquiry. We can then review the intended duty with the selected model rather than relying on a brief description.

If your machine will later run faster or handle a different fixture, include that plan during selection. We can assess the intended range before the configuration is approved.

4. We Check Shaft Direction, Clearance and External Loads

We ask you to identify the input and output shafts on a layout. Mark the required rotation arrows and the viewing direction. A clockwise instruction is incomplete if the two teams are looking at opposite shaft ends.

When reviewing rotation direction, we suggest keeping the same drawing view in the quotation and assembly documents. Label each shaft and show the required input movement alongside the expected output. If another drive component changes direction again, include that component in the layout. This gives the machine team a clearer reference when checking the complete power path.

We also review where the motor body, connector and mounting bolts will sit. A right angle gearbox can help organize a compact drive, but its installation needs to be assessed with the surrounding components in place.

Backlash is another part of that review. It describes the small free movement that can appear as gear contact changes direction. An arcminute is one sixtieth of a degree, so we often translate the angle into travel at a stated working radius.

Source: our geometric calculations using the arc relationship in OpenStax, University Physics Volume 1, Section 10.1, Rotational Variables. Arc travel = radius × angle in radians; radians = arcminutes × pi / 10,800. Values are rounded to four decimal places. They illustrate angular clearance, not total machine error or a positioning guarantee.

We use the working radius to connect the gearbox requirement with the process. Tell us where movement matters at the workpiece and whether the axis approaches its target from one direction or both.

For repeated reversals, we ask how the working load changes direction and where clearance matters in the process. A feed that always pushes against the same contact side can behave differently from a mechanism that approaches a target from both directions. We use the actual sequence to discuss the backlash requirement and the conditions under which it should be checked.

We distinguish backlash from elastic twist under load and from repeatability. Couplings, fixtures and control settings can also affect the final position. The complete machine requirement should guide the gearbox specification.

We also check radial force across the shaft and axial force along it. Include the location of a pulley, sprocket or coupling because the distance from the housing affects the support requirement.

We also ask whether an external component is supported by its own bearings or directly by the gearbox shaft. That difference belongs in the load review. Include the coupling arrangement and any alignment requirements on the drawing. We can then discuss the connection with a more complete picture of what the gearbox must transmit and support.

We confirm the accepted backlash, shaft loads and installation dimensions for the selected unit. That creates a clear basis for review before the gearbox reaches your assembly team.

5. Where We Consider the AT in Industrial Equipment

Packaging and printing machinery

We review the AT Precision Spiral Bevel Gear Commutator for suitable roller, feed and auxiliary drive arrangements where the power path needs to turn. We ask whether the mechanism runs continuously or moves between stops.

For coordinated motion, tell us how the driven components work together and what movement the process permits. A registration requirement in printing may need a different precision discussion from a simple material transfer function.

Conveyors and material handling

We consider a right angle bevel gearbox where motor placement and shaft direction affect the conveyor layout. We review the required speed, loaded starts and external transmission before assessing a configuration.

Include the pulley or sprocket dimensions and its position on the shaft. We need those details to review bearing loads as well as the torque transmitted to the mechanism.

Automation and robotic equipment

We can discuss suitable auxiliary axes, transfer mechanisms and fixture drives in automated cells. For robotic equipment, we assess the specific motion and load rather than treating every axis as the same application.

We ask about reversal frequency, stopping behavior and the load during movement. A sketch showing the driven mechanism helps us understand the connection and clearance requirements.

CNC machinery and assembly systems

We review suitable auxiliary feeds and handling drives around CNC equipment. Cutting or contouring functions require their own assessment of stiffness, load and positioning behavior.

For assembly equipment, we ask what happens when the mechanism stops. A fixture may need to hold position while another tool applies force, making that part of the load description important.

Across these industries, we also review temperature, dust, moisture and cleaning conditions. We confirm special environmental requirements for the proposed configuration rather than assuming they follow from the application name.

6. How We Support Consistent Manufacturing Quality

At HOAJEAR, our work combines transmission design, research, development and production. We use engineering input to connect your required gearbox behavior with the dimensions and features that need to be controlled.

Our company manufacturing resources include the Kashifuji KPS30 gear skiving machine, HAMA IN60 gear hobbing machine and DMG machining centers. We choose the appropriate manufacturing route for the component and drawing requirements.

Our inspection resources include the HT-350 gear inspection system, backlash testing equipment and a GLOBAL coordinate measuring machine. A coordinate measuring machine, or CMM, checks dimensions and geometric relationships between features.

We give attention to mounting faces, bearing locations, shaft interfaces and gear geometry. These features work together in the assembly and influence how the gearbox connects to your motor and machine.

Delivery acceptance follows the drawings and technical agreement confirmed by both sides. We review the agreed ratio, backlash, installation dimensions and running condition.

If your project needs inspection records or a particular test method, identify that requirement before order approval. We can discuss the relevant load, speed and measurement conditions while defining the documentation scope.

We also welcome drawing notes that identify critical assembly features. Tell us which surfaces locate against your frame and which dimensions control the connection. That information helps us understand how the part will be installed.

We can review available layout models alongside the approved drawings. Use the agreed dimensional drawing to confirm mounting holes, tolerances and shaft details so the installation reference remains clear throughout design, purchasing, assembly and future equipment replacement planning.

Our quality first and customer foremost philosophy is reflected in these practical steps. We want requirements to be understandable, acceptance to be agreed and the delivered configuration to match the approved technical documents.

For a new machine design, we can discuss an initial evaluation order before a larger purchase. Agree on the fixture, load, motion and acceptance points before the assessment. Use the results to confirm the requirement for production. If the connection or operating cycle changes afterward, send the revised information so we can review the affected details.

7. What We Confirm Before Production and Delivery

We can begin a quotation review with your motor model, required output speed, load description, motion cycle and quantity. Add the motor drawing and machine layout so we can review the interfaces.

We confirm the complete model and supply scope during quotation. Include any adapter, coupling, inspection document or packing requirement you expect in the offer. Clear scope helps your purchasing team compare equivalent configurations.

Production timing depends on model, quantity, stock status and customization requirements. We confirm the delivery date in the contract. A modified connection or special inspection scope may need a separate schedule review.

Payment can be negotiated through an advance payment and the remaining balance before shipment. We record the agreed payment method and schedule in the contract.

We choose courier, road, sea or air transport according to shipment size and timing. Packaging uses suitable rust and moisture protection, cushioning and secure fixing, with cartons or wooden cases selected for transport protection.

At receipt, we suggest checking packaging condition and matching the delivered identification to the order documents. Confirm the approved drawing revision before assembly. If the motor or machine connection has changed since the previous order, send the updated information for review. This helps your team keep repeat purchases aligned with the equipment it actually intends to build.

If the unit will be stored before installation, tell us about the expected conditions. We can review the relevant packing needs and storage guidance with the order.

We recommend reviewing maintenance access while the machine layout can still be changed. Your team should be able to reach the required fasteners and perform the checks specified for the confirmed configuration. Ask us about the applicable lubrication and operating guidance, then keep those instructions available to the people responsible for installing and maintaining the equipment.

During installation, we recommend following the approved instructions and tightening requirements. Keep mating surfaces clean, align the connections and avoid using impact force to fit shaft components.

For commissioning, check direction, mounting security and settings before evaluating the intended working cycle. Assess the relevant load and motion against the agreed acceptance conditions.

We suggest keeping the approved drawing, inspection requirements and operating guidance with your machine records. They provide a shared reference for receiving, assembly and later service work.

8. Questions We Discuss During an AT Inquiry

Does every AT configuration reduce speed?

We offer listed configurations with different ratios, including 1 to 1 examples. A 1 to 1 arrangement changes the power direction without reducing nominal speed magnitude. We confirm the ratio for the selected model.

Can we connect our existing motor?

We review the motor drawing, interface and working performance before confirming compatibility. Similar power or flange appearance does not establish a suitable connection. Send the complete motor model with your inquiry.

Which shaft arrangement should we choose?

We need a layout showing the motor position, driven connection and required rotation arrows. Mark the viewing direction and available installation space so we can review the appropriate arrangement.

Is backlash the same as positioning accuracy?

We treat backlash as one mechanical characteristic. Load related twist, couplings, fixtures and controls can also affect the workpiece position. Tell us the required process result so we can discuss a useful specification.

Can we request customization?

We can assess your drawing and connection requirements. Feasibility, price and production timing depend on the changes needed. We confirm the accepted configuration and terms before proceeding with the order.

How will the unit be accepted?

We follow the mutually confirmed drawings and technical agreement, including ratio, backlash, mounting dimensions and operating checks. Identify any additional records or test conditions before production.

How can we start?

Send us your application information, drawings and quantity. We will review the AT Precision Spiral Bevel Gear Commutator against your speed, load and layout requirements and prepare a proposal with clear technical details and commercial terms.
